TENS/ EMS Electrode Hydrogel without Carbon film, Medical Electrode Hydrogel

More specifications are available .
We offer a wide range of options for formulating and curing hydrogels, resulting in virtually endless possibilities for hydrogel use. Whether you need hydrogel as a raw material, converted into a subassembly, or assembled directly into a final product, we will work with you to find the right solution.
With state-of-the-art manufacturing facilities, experienced professionals at every level, and the passion of building innovation for life, we can turn your idea into a reality.

details


It can be used for TENS electrode, medical sensing electrode, electrode  silicone electrode adhesive, beauty mask and other medical electrodes. The Hydrogel has good stickiness, and is high repetition frequency of use, biocompatible, non-toxic, non-allergenic, non-irritating, strong conductivity. Dimensions and thickness can be customized according to customer requirements.



Persistant Stickiness: Hung 200g weight, last for at least 30 seconds

Initial Stikiness: Holde min # 14 steel ball

Cytotoxicity Test, ISO 10993-5: PASS

Skin Irritation Test, ISO 10993-10: PASS

Skin Sensitation Test, ISO 10993-10: PASS

Top Liner: 0.05 mm PET

Bottom Liner: 0.125 mm PET

Hydrogel Thickness: 1.1(mm) (± 0.5 mm) or per custoner's request

Hydrogel PH: 6.5 (± 1.0)

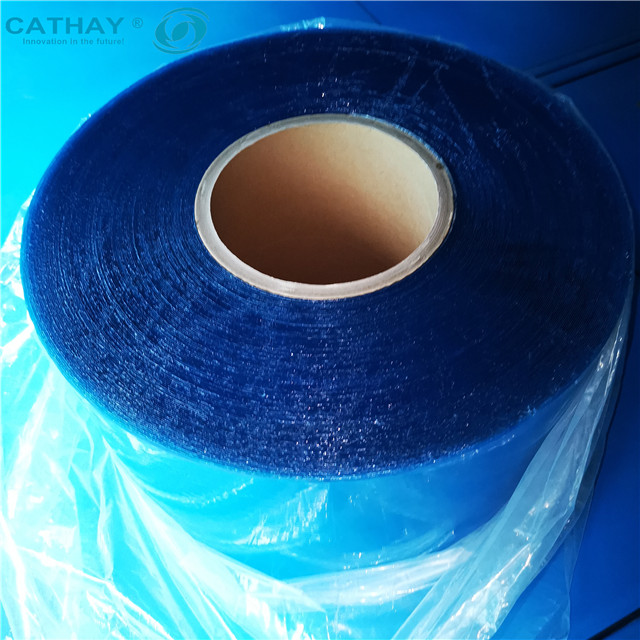

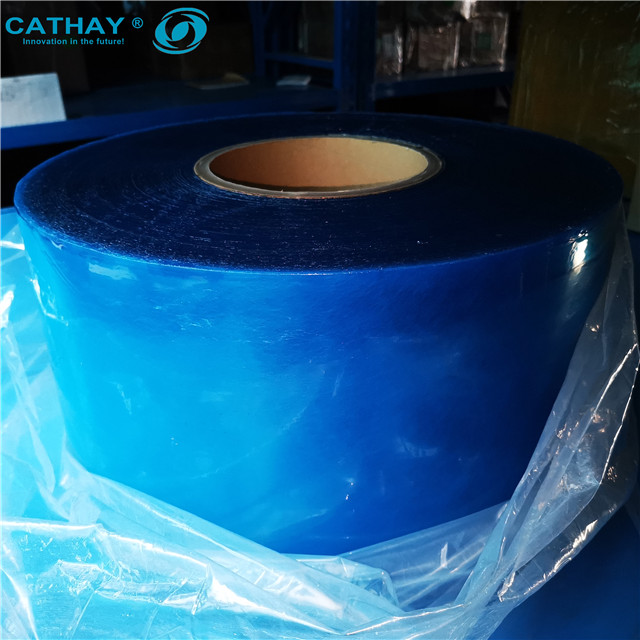

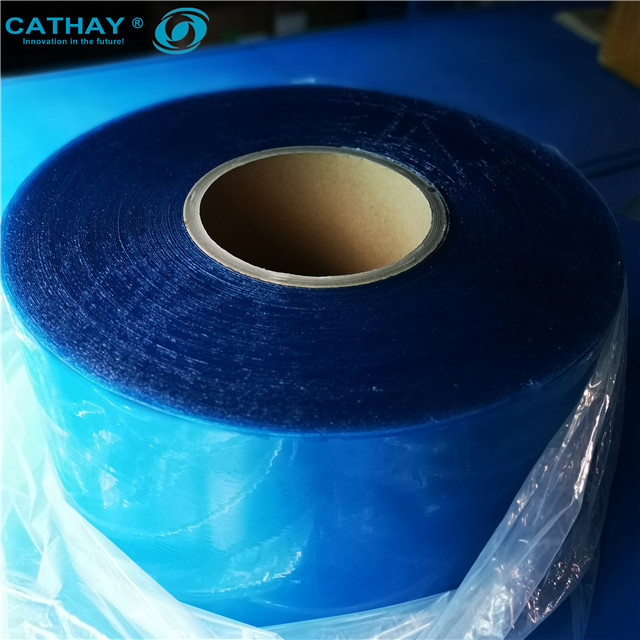

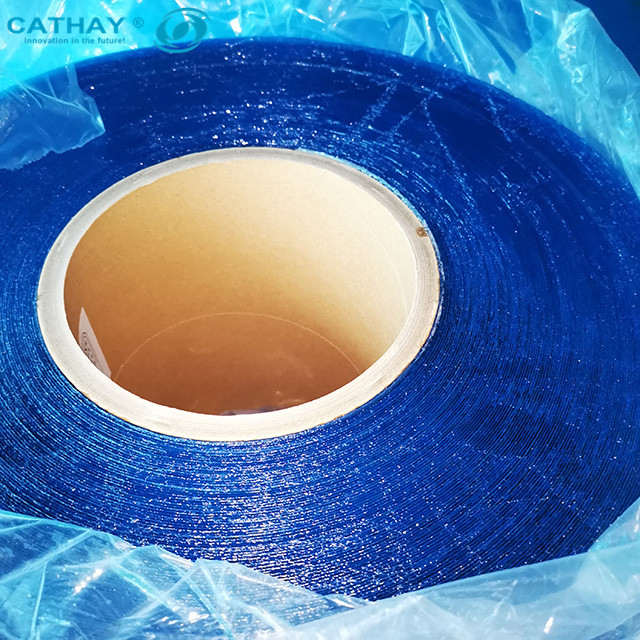

Roll Dimensions: Width:230 mm, Length: 70 m/roll
